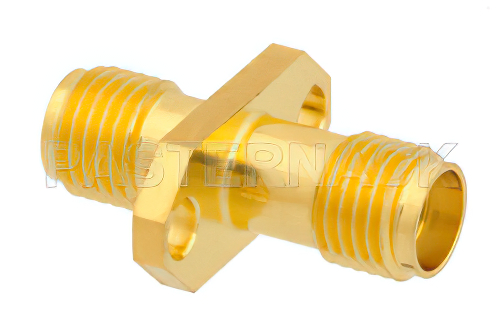

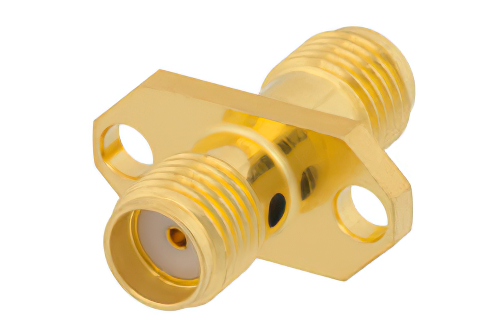

2ホールパネルマウント SMA メス 〜 SMA メス アダプタ

製品ID: PE91290

数量別価格

数量単価
1-24¥5,986
25-49¥5,687
50-99¥5,387
100-249¥5,148
250+Call

消費税込単価
数量:
在庫数:1,041
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max18 GHz
Adapter Body StyleStraight
Connector Mount Method 12 Hole Flange
Connector Body Material 1Brass
Connector Body Plating 1Gold
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Gold

Description

2 Hole Flange Mount SMA Female to SMA Female Adapter

SMA adapter PE91290 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to SMA adapter is a in-series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 18 GHz.

SMA female to SMA female adapter is one of the many RF components that ship same day as they are ordered. PE91290 female SMA to female SMA adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to female SMA adapter PE91290 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This SMA to SMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
