SMA メスバルクヘッド〜 SMP メスケーブル、PE-SR405FL 同軸、鉛フリーはんだ

製品ID: PE3W00474LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50
Connector Series 2	SMP
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-SR405FL
RF Cable Type	PE-SR405FL
RF Cable Impedance	50

Description

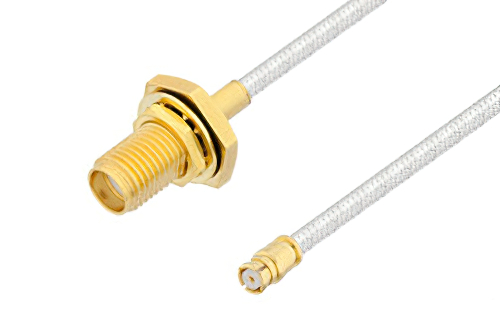

SMA Female Bulkhead to SMP Female Cable Using PE-SR405FL Coax, LF Solder, RoHS

PE3W00474LF is a SMA female bulkhead to SMP female cable using PE-SR405FL coax. This Pasternack SMA female bulkhead to SMP female cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMP for connector 2.

Our female SMA bulkhead to female SMP cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3W00474LF SMA female bulkhead to SMP female cable assembly is constructed with PE-SR405FL coax.
