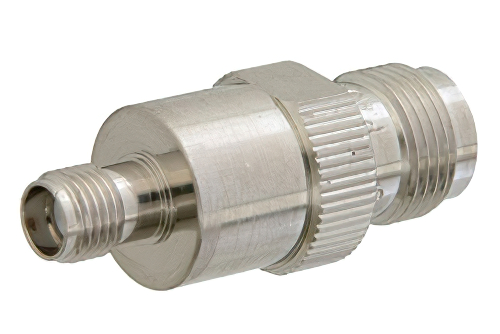

SMA メス 〜 TNC メス アダプタ

製品ID: PE9079

数量別価格

数量単価
1-24¥15,296
25-49¥14,531
50-99¥13,766
100-249¥13,155
250+Call

消費税込単価
数量:
在庫数:177
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max11 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None

Description

SMA Female to TNC Female Adapter

SMA adapter PE9079 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to TNC adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 11 GHz.

SMA female to TNC female adapter is one of the many RF components that ship same day as they are ordered. PE9079 female SMA to female TNC adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to female TNC adapter PE9079 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This SMA to TNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
