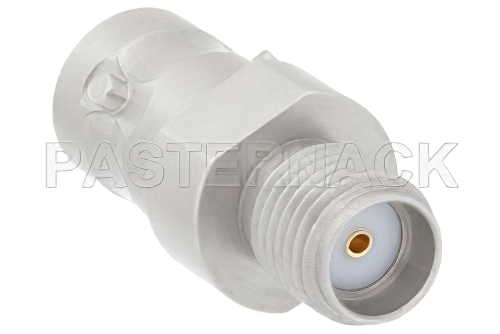

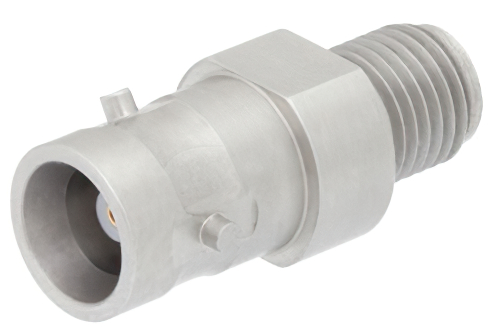

プレシジョン SMA メス 〜 ZMA ジャック アダプタ、突起 3か所

製品ID: PE91074

数量別価格

数量単価
1-24¥42,457
25-49¥39,485
50-99¥36,513
100-249¥33,966
250+Call

消費税込単価
数量:
在庫数:7
在庫限りで供給終了
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2ZMA
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max18 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None

Description

Precision SMA Female to ZMA Jack Adapter, 3 Lug

SMA adapter PE91074 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to ZMA adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 18 GHz.

SMA female to ZMA jack adapter is one of the many RF components that ship same day as they are ordered. PE91074 female SMA to jack ZMA adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to jack ZMA adapter PE91074 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This 3 lug SMA to ZMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
