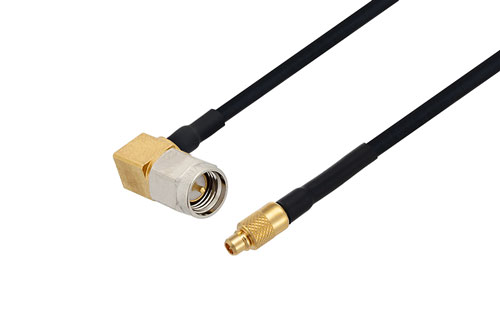

SMA Male Right Angle to MMCX Plug Cable Using PE-SR405FLJ Coax

製品ID: PE3W08331

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MMCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR405FLJ
RF Cable Type	PE-SR405FLJ
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4025	PE-SR405FLJ	PE44453	KitBOM Datasheet

SMA Male Right Angle to MMCX Plug Cable Using PE-SR405FLJ Coax

PE3W08331 is a SMA male right angle to MMCX plug cable using PE-SR405FLJ coax. This Pasternack SMA male right angle to MMCX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMCX for connector 2. SMA right angle to MMCX coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to plug MMCX cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3W08331 SMA male right angle to MMCX plug cable assembly is constructed with PE-SR405FLJ coax.
