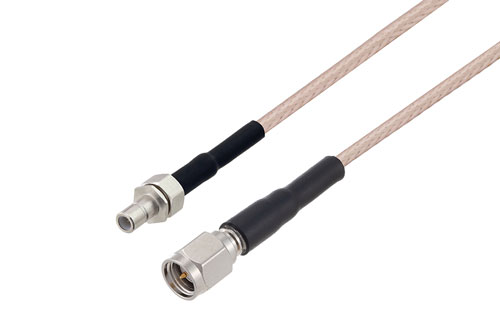

SMB ジャック〜 SMA オスケーブル、RG316 同軸、熱収縮チューブ

製品ID: PE3W03435/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMB
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4096	RG316/U	TC-100-SM	KitBOM Datasheet

SMB Jack to SMA Male Cable Using RG316 Coax with HeatShrink

PE3W03435/HS is a SMB jack to SMA male cable using RG316 coax. This Pasternack SMB jack to SMA male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMA for connector 2.

Our jack SMB to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W03435/HS SMB jack to SMA male cable assembly is constructed with RG316 coax.
