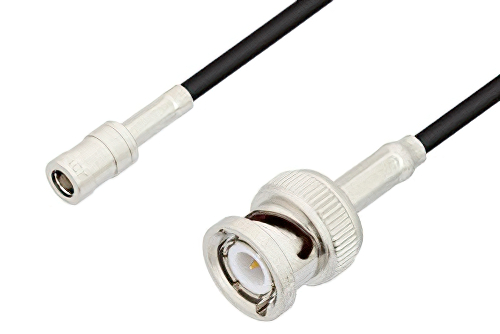

SMB プラグ 〜 BNC オス ケーブル、PE-B100 同軸

製品ID: PE37536

長さ

*長さは0.25インチまたはcm単位で指定できます
終息品
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-B100
RF Cable TypePE-B100
RF Cable Impedance50

Description

SMB Plug to BNC Male Cable Using PE-B100 Coax

PE37536 is a SMB plug to BNC male cable using PE-B100 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE37536 SMB plug to BNC male cable assembly is constructed with PE-B100 coax and the maximum VSWR is 1.4:1.
