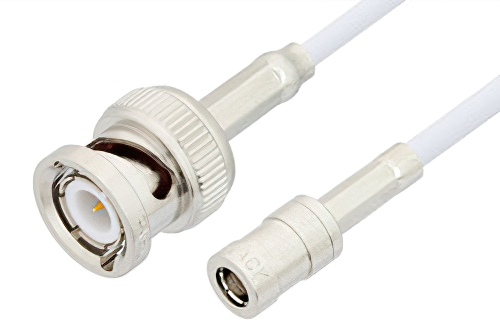

SMB プラグ〜 BNC オスケーブル、RG188 同軸

製品ID: PE3671

長さ

標準長

*長さは0.25インチまたはcm単位で指定できます

終息品

代替品PE3C3428.

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG188A/U
RF Cable Type	RG188
RF Cable Impedance	50

Description

SMB Plug to BNC Male Cable Using RG188 Coax

PE3671 is a SMB plug to BNC male cable using RG188 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3671 SMB plug to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
