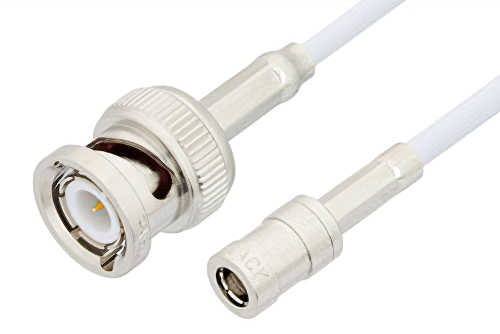

SMB プラグ 〜 BNC オス ケーブル、RG188 同軸、鉛フリーはんだ

製品ID: PE3671LF

長さ

*長さは0.25インチまたはcm単位で指定できます
終息品
代替品PE3C3428LF.
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50

Description

SMB Plug to BNC Male Cable Using RG188 Coax, RoHS

PE3671LF is a SMB plug to BNC male cable using RG188 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3671LF SMB plug to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
