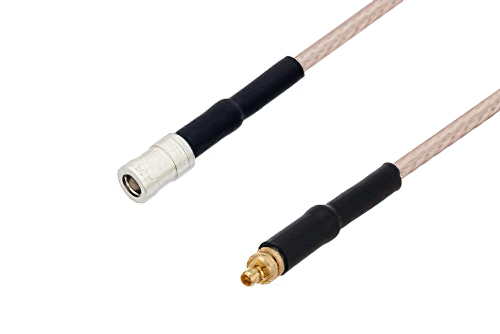

SMB プラグ〜 MMCX プラグケーブル、RG316-DS 同軸、熱収縮チューブ

製品ID: PE3W04944/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MMCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44792	RG316-DS	PE44874	KitBOM Datasheet

SMB Plug to MMCX Plug Cable Using RG316-DS Coax with HeatShrink

PE3W04944/HS is a SMB plug to MMCX plug cable using RG316-DS coax. This Pasternack SMB plug to MMCX plug cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm MMCX for connector 2.

Our plug SMB to plug MMCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W04944/HS SMB plug to MMCX plug cable assembly is constructed with RG316-DS coax.
