SMB プラグ 直角コネクタ、圧着/はんだ接続、RG178、RG196

製品ID: PE4159

数量別価格

数量単価
1-24¥6,685
25-49¥6,351
50-99¥6,017
100-249¥5,749
250+Call

消費税込単価
数量:
在庫数:350
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMB
Connector GenderPlug
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz
Interface Type 1RG178
Interface Type 2RG196

Description

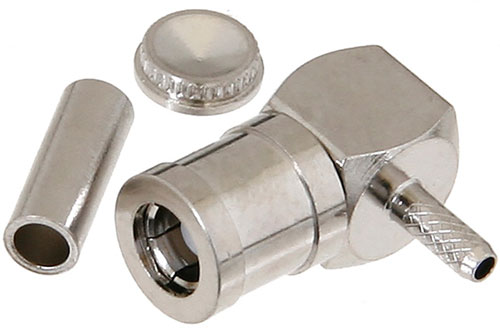

SMB Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196

PE4159 SMB plug right angle coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SMB plug connector uses shield/contact crimp/solder as an attachment method. Our plug SMB right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack right angle SMB plug coaxial connector has a PTFE dielectric type and a VSWR of 1.5. The Pasternack SMB coaxial connector has a brass body with nickel plating. Our PE4159 SMBright angle connector uses beryllium copper contact. This SMB plug right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle plug SMB connector will ship the same day as purchased. Our SMB right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMB connector cable assemblies that will ship the same day as well.
