SMB プラグ 直角 〜 SMB ジャック バルクヘッドケーブル、RG58 同軸

製品ID: PE34469

長さ

*長さは0.25インチまたはcm単位で指定できます
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG58C/U
RF Cable TypeRG58
RF Cable Impedance50

Description

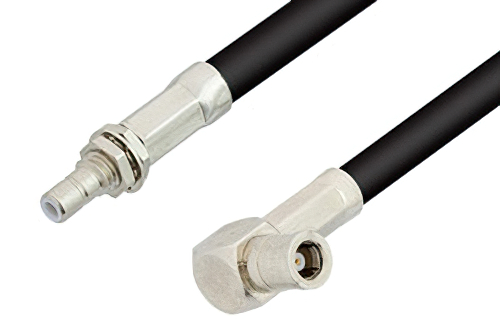

SMB Plug Right Angle to SMB Jack Bulkhead Cable Using RG58 Coax

PE34469 is a SMB plug right angle to SMB jack bulkhead cable using RG58 coax. This Pasternack SMB plug right angle to SMB jack bulkhead cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB right angle to SMB coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to jack SMB bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34469 SMB plug right angle to SMB jack bulkhead cable assembly is constructed with RG58 coax.
