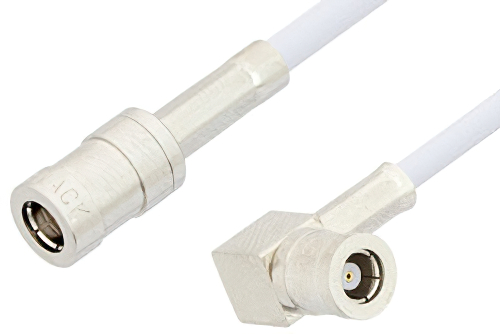

SMB プラグ〜 SMB プラグ直角ケーブル、RG188-DS 同軸、鉛フリーはんだ

製品ID: PE33143LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	SMB
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG188-DS
RF Cable Type	RG188-DS
RF Cable Impedance	50

Description

SMB Plug to SMB Plug Right Angle Cable Using RG188-DS Coax, RoHS

PE33143LF is a SMB plug to SMB plug right angle cable using RG188-DS coax. This Pasternack SMB plug to SMB plug right angle cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB to SMB right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB to plug SMB right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33143LF SMB plug to SMB plug right angle cable assembly is constructed with RG188-DS coax and the maximum VSWR is 1.4:1.
