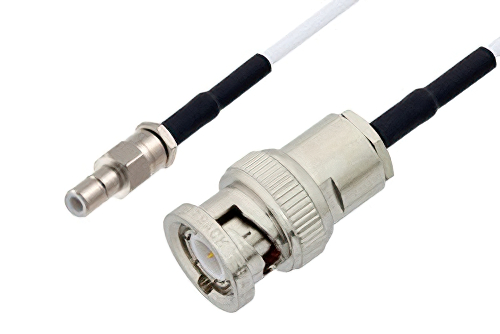

SMB Jack to BNC Male Cable Using RG196 Coax with HeatShrink, LF Solder

製品ID: PE3W00677LF/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMB
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG196A/U
RF Cable Type	RG196
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4926	RG196A/U	PE4643	KitBOM Datasheet

SMB Jack to BNC Male Cable Using RG196 Coax with HeatShrink, LF Solder

PE3W00677LF/HS is a SMB jack to BNC male cable using RG196 coax. This Pasternack SMB jack to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our jack SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W00677LF/HS SMB jack to BNC male cable assembly is constructed with RG196 coax.
