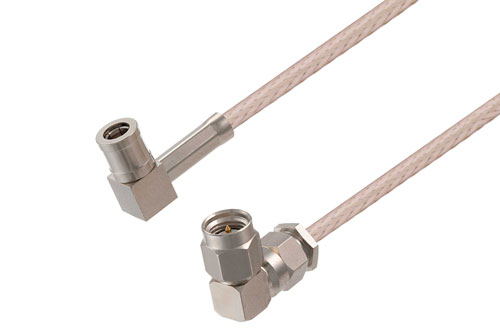

SMB Plug Right Angle to SMA Male Right Angle Cable Using RG316-DS Coax

製品ID: PE3W09947

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44818	RG316-DS	PE4407	KitBOM Datasheet

SMB Plug Right Angle to SMA Male Right Angle Cable Using RG316-DS Coax

PE3W09947 is a SMB plug right angle to SMA male right angle cable using RG316-DS coax. This Pasternack SMB plug right angle to SMA male right angle cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMA for connector 2. SMB right angle to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09947 SMB plug right angle to SMA male right angle cable assembly is constructed with RG316-DS coax.
