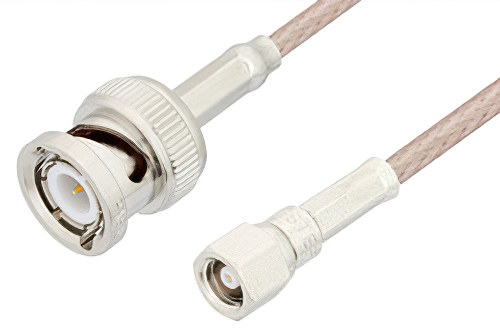

SMC プラグ〜 BNC オスケーブル、RG316-DS 同軸、鉛フリーはんだ

製品ID: PE3437LF

長さ

標準長

*長さは0.25インチまたはcm単位で指定できます

終息品

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMC
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50

Description

SMC Plug to BNC Male Cable Using RG316-DS Coax, RoHS

PE3437LF is a SMC plug to BNC male cable using RG316-DS coax. This Pasternack SMC plug to BNC male cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMC to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3437LF SMC plug to BNC male cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
