SMC プラグ〜 MCX プラグ、低損失ケーブル、LMR-100 同軸

製品ID: PE3W04152

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMC
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4045	LMR-100A-PVC	PE4551	KitBOM Datasheet

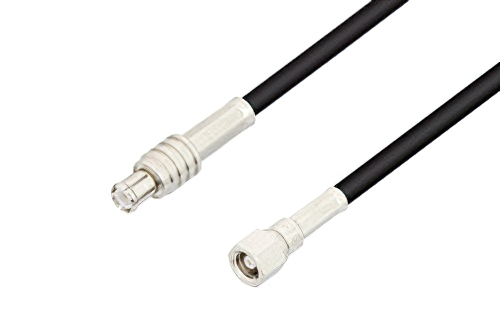

SMC Plug to MCX Plug Cable Using LMR-100 Coax

PE3W04152 is a SMC plug to MCX plug cable using LMR-100A coax. This Pasternack SMC plug to MCX plug cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm MCX for connector 2.

Our plug SMC to plug MCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W04152 SMC plug to MCX plug cable assembly is constructed with LMR-100A coax.

* LMR™ is a trademark of Times Microwave Systems.
