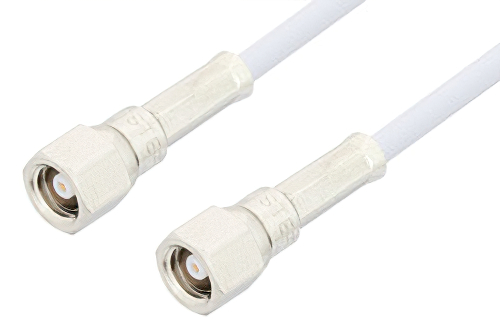

SMC プラグ〜 SMC プラグケーブル、RG188 同軸

製品ID: PE3595

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMC
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	SMC
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG188A/U
RF Cable Type	RG188
RF Cable Impedance	50

Description

SMC Plug to SMC Plug Cable Using RG188 Coax

PE3595 is a SMC plug to SMC plug cable using RG188 coax. This Pasternack SMC plug to SMC plug cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm SMC for connector 2.

Our plug SMC to plug SMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3595 SMC plug to SMC plug cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
