SMP メス コネクタ、はんだ接続、RG405、PE-SR405AL、PE-SR405FL、PE-SR405FLJ、最大 8 GHz

製品ID: PE44770
終息品
代替品PE45285.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMP
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency8 GHz
Interface Type 1RG405
Interface Type 2PE-SR405AL
Interface Type 3PE-SR405FL
Interface Type 4PE-SR405FLJ

Description

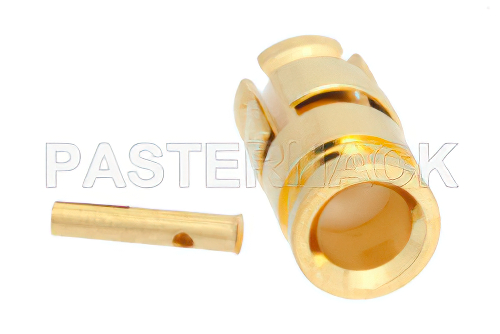

SMP Female Connector Solder Attachment for RG405, PE-SR405AL, PE-SR405FL, PE-SR405FLJ Up To 8 GHz

PE44770 SMP female coaxial connector has an interface type of RG405, PE-SR405AL, PE-SR405FL, PE-SR405FLJ and a 50 Ohm impedance. Pasternack SMP female connector uses shield/contact solder as an attachment method. Our female SMP coaxial connector provides a minimum frequency of DC and a maximum frequency of 8 GHz.

The Pasternack SMP female coaxial connector has a PTFE dielectric type and a VSWR of 1.1. The Pasternack SMP coaxial connector has a beryllium copper body with gold plating. Our PE44770 SMP connector uses beryllium copper contact. This SMP female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female SMP connector will ship the same day as purchased. Our SMP female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMP connector cable assemblies that will ship the same day as well.
