SMP メス〜 SMP メスケーブル、PE-047SR 同軸、鉛フリーはんだ

製品ID: PE36146LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMP
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	SMP
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-047SR
RF Cable Type	PE-047SR
RF Cable Impedance	50

Description

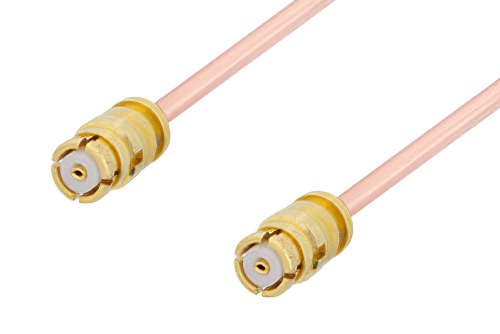

SMP Female to SMP Female Cable Using PE-047SR Coax, RoHS

PE36146LF is a SMP female to SMP female cable using PE-047SR coax. This Pasternack SMP female to SMP female cable assembly uses a 50 Ohm SMP for connector 1 and a 50 Ohm SMP for connector 2.

Our female SMP to female SMP cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE36146LF SMP female to SMP female cable assembly is constructed with PE-047SR coax and the maximum VSWR is 1.4:1.
