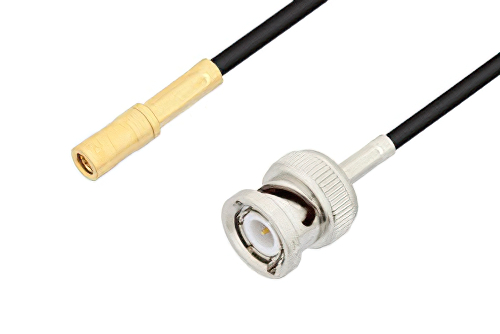

SSMB プラグ〜 BNC オスケーブル、RG174 同軸

Name: SSMB プラグ 〜 BNC オス ケーブル、RG174 同軸
Brand: Pasternack
SKU: PE3C3390

製品ID: PE3C3390

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SSMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG174A/U
RF Cable Type	RG174
RF Cable Impedance	50

Description

SSMB Plug to BNC Male Cable Using RG174 Coax

PE3C3390 is a SSMB plug to BNC male cable using RG174 coax. This Pasternack SSMB plug to BNC male cable assembly uses a 50 Ohm SSMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SSMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3390 SSMB plug to BNC male cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
