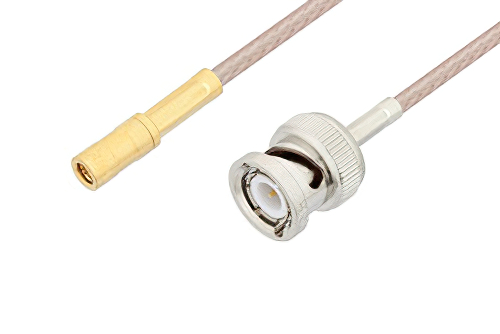

SSMB プラグ〜 BNC オスケーブル、RG316 同軸

Name: SSMB プラグ 〜 BNC オス ケーブル、RG316 同軸
Brand: Pasternack
SKU: PE3C3408

製品ID: PE3C3408

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SSMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

SSMB Plug to BNC Male Cable Using RG316 Coax

PE3C3408 is a SSMB plug to BNC male cable using RG316 coax. This Pasternack SSMB plug to BNC male cable assembly uses a 50 Ohm SSMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SSMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3408 SSMB plug to BNC male cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
