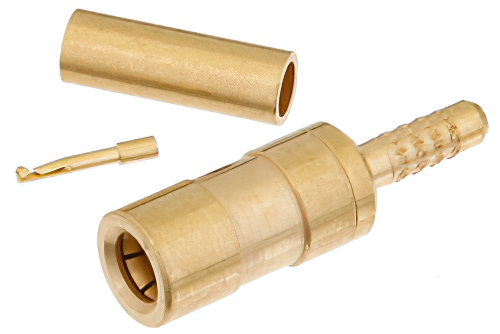

SSMB プラグ コネクタ、圧着/はんだ接続、RG178、RG196

製品ID: PE4019

数量別価格

数量単価
1-24¥7,341
25-49¥6,974
50-99¥6,607
100-249¥6,313
250+Call

消費税込単価
数量:
在庫数:581
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMB
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency4 GHz
Interface Type 1RG178
Interface Type 2RG196

Description

SSMB Plug Connector Crimp/Solder Attachment for RG178, RG196

PE4019 SSMB jack coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SSMB jack connector uses shield/contact crimp/solder as an attachment method. Our jack SSMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack SSMB jack coaxial connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack SSMB coaxial connector has a brass body with gold plating. Our PE4019 SSMB connector uses beryllium copper contact and a gold plating material. This SSMB jack coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack SSMB connector will ship the same day as purchased. Our SSMB jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMB connector cable assemblies that will ship the same day as well.
