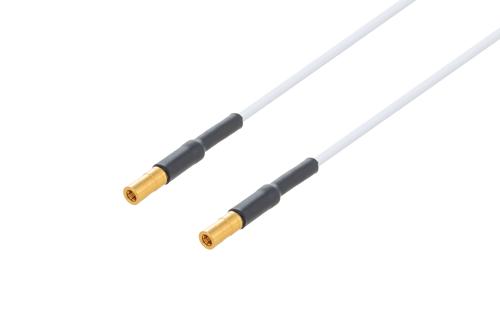

SSMB プラグ〜 SSMB プラグケーブル、RG188-DS 同軸、熱収縮チューブ

製品ID: PE3W06017/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SSMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SSMB
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG188-DS
RF Cable Type	RG188-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45153	RG188-DS	PE45153	KitBOM Datasheet

SSMB Plug to SSMB Plug Cable Using RG188-DS Coax with HeatShrink

PE3W06017/HS is a SSMB plug to SSMB plug cable using RG188-DS coax. This Pasternack SSMB plug to SSMB plug cable assembly uses a 50 Ohm SSMB for connector 1 and a 50 Ohm SSMB for connector 2.

Our plug SSMB to plug SSMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W06017/HS SSMB plug to SSMB plug cable assembly is constructed with RG188-DS coax.
