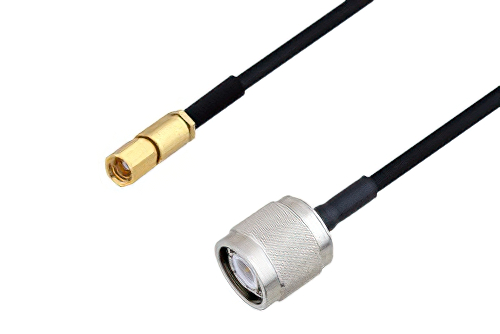

SSMC プラグ〜 TNC オスケーブル、PE-SR405FLJ 同軸

製品ID: PE3C4453

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SSMC
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR405FLJ
RF Cable Type	PE-SR405FLJ
RF Cable Impedance	50 Ohm

Description

SSMC Plug to TNC Male Cable Using PE-SR405FLJ Coax

PE3C4453 is a SSMC plug to TNC male cable using PE-SR405FLJ coax. This Pasternack SSMC plug to TNC male cable assembly uses a 50 Ohm SSMC for connector 1 and a 50 Ohm TNC for connector 2.

Our plug SSMC to male TNC cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3C4453 SSMC plug to TNC male cable assembly is constructed with PE-SR405FLJ coax and the maximum VSWR is 1.4:1.
