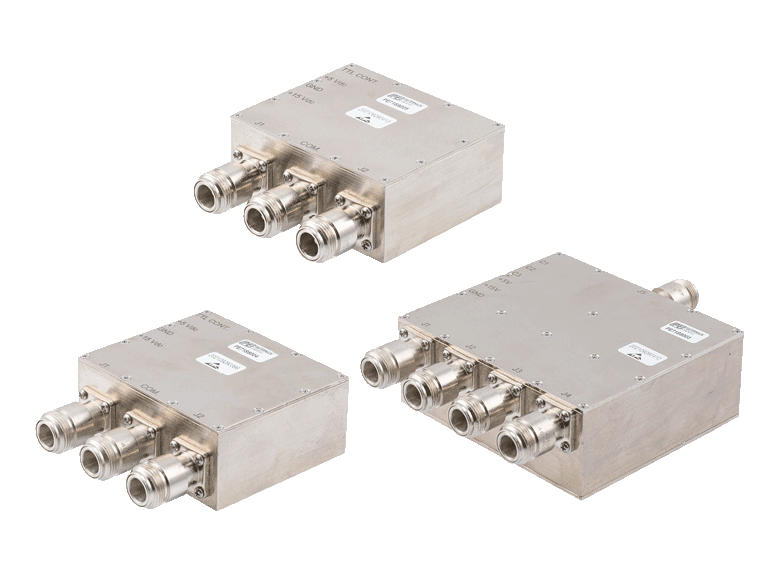

We offer a series of in-stock, highly reliable High Power PIN Diode Switches designed for transmit and receive chains, and for test & measurement applications
Uninterrupted Operation
Several models feature Hot Switching for swapping components without interrupting your devices' performance
Available and Certified
Shipped from our facility certified to ISO 9001:2015 the same day as ordered
Wide Frequency Coverage
Coverage from 30 MHz to 6 GHz
High Power
Power handling up to 200 W
Rugged Design
Compact and rugged MIL-grade coaxial packages with an operational temperature range up to -40oC to +85oC
Connector Options
SMA and N-Type female connector options
High Speed
Rated at a switching speed of 40,000 ns
SP4T High Power PIN Diode Switch Operating from 30 MHz to 512 MHz up to 200 Watts Average Power (+53 dBm) and N Type

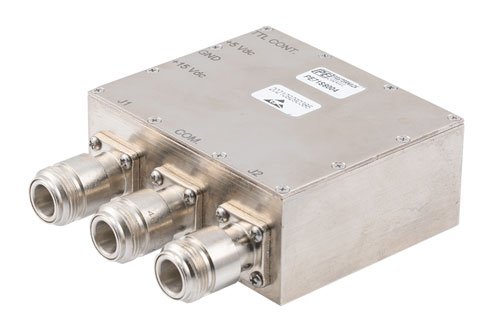

SPDT High Power PIN Diode Swtich Operating from 100 MHz to 500 MHz up to 100 Watts Average Power (+47 dBm) Hot Switching and N Type

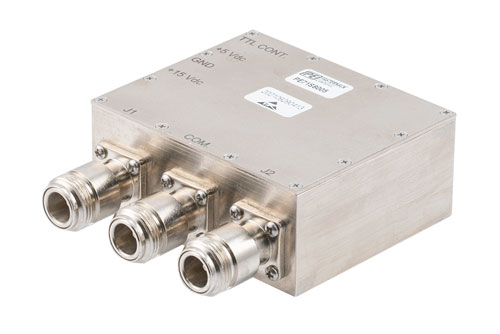

SPDT High Power PIN Diode Switch Operating from 960 MHz to 1300 MHz up to 200 Watts Average Power (+53 dBm) and N Type
SPDT PIN Diode Swtich Operating from 800 MHz to 3 GHz up to 75 Watts (+48.75 dBm) and N Type
