TNC オス 直角コネクタ、圧着/はんだ接続、RG188-DS、RG316-DS

製品ID: PE45174

数量別価格

数量単価
1-24¥6,685
25-49¥6,351
50-99¥6,017
100-249¥5,749
250+Call

消費税込単価
数量:
在庫数:375
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesTNC
Connector GenderMale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone
Interface Type 1RG188-DS
Interface Type 2RG316-DS

Description

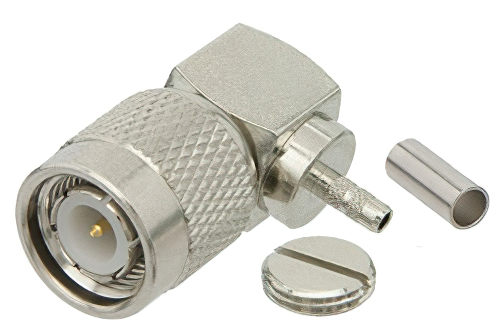

TNC Male Right Angle Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

PE45174 TNC male right angle coaxial connector has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. Pasternack TNC male connector uses shield/contact crimp/solder as an attachment method.

The Pasternack right angle TNC male coaxial connector has a delrin dielectric type. The Pasternack TNC coaxial connector has a brass body with nickel plating. Our PE45174 TNCright angle connector uses brass contact. This TNC male right angle coaxial RF connector is REACH compliant.

This Pasternack right angle male TNC connector will ship the same day as purchased. Our TNC right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom TNC connector cable assemblies that will ship the same day as well.
