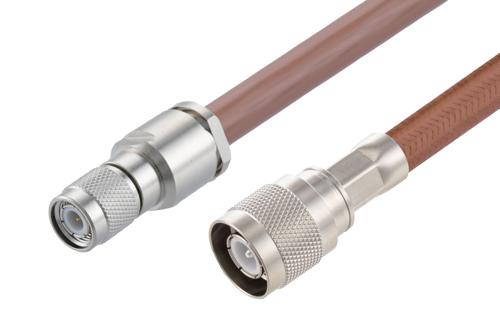

TNC オス ~ SC オス, ケーブル RG393 同軸

製品ID: PE3W11768

長さ

*長さは0.25インチまたはcm単位で指定できます
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG393/U
RF Cable TypeRG393
RF Cable Impedance50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4088RG393/UPE4232KitBOM Datasheet

TNC Male to SC Male Cable Using RG393 Coax

PE3W11768 is a TNC male to SC male cable using RG393 coax. This Pasternack TNC male to SC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm SC for connector 2.

Our male TNC to male SC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W11768 TNC male to SC male cable assembly is constructed with RG393 coax.
