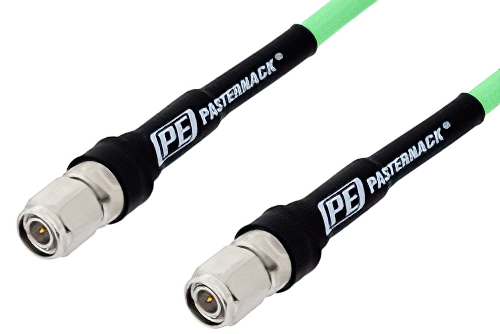

TNC オス〜 TNC オス、低損失テストケーブル、PE-P300LL 同軸

製品ID: PE334

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	TNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-P300LL
RF Cable Type	PE-P300LL
RF Cable Impedance	50

Description

TNC Male to TNC Male Low Loss Test Cable Using PE-P300LL Coax, RoHS

PE334 is a TNC male to TNC male cable using PE-P300LL coax. This Pasternack TNC male to TNC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm TNC for connector 2.

Our male TNC to male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE334 TNC male to TNC male cable assembly is constructed with PE-P300LL coax and the maximum VSWR is 1.35:1.
