TNC オス 〜 TNC オス ケーブル、RG223 同軸

製品ID: PE3414

長さ

*長さは0.25インチまたはcm単位で指定できます
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50

Description

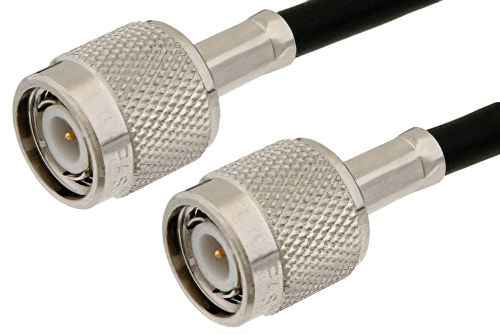

TNC Male to TNC Male Cable Using RG223 Coax

PE3414 is a TNC male to TNC male cable using RG223 coax. This Pasternack TNC male to TNC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm TNC for connector 2.

Our male TNC to male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3414 TNC male to TNC male cable assembly is constructed with RG223 coax and the maximum VSWR is 1.4:1.
