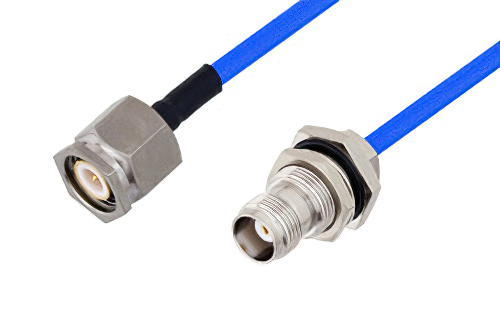

TNC オス〜 TNC メスバルクヘッドケーブル、PE-141フレキシブル同軸、鉛フリーはんだ

製品ID: PE3CA1046

長さ

標準長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50
RF Cable Part Number	PE-P141EAM
RF Cable Type	PE-141FLEX
RF Cable Impedance	50

Description

TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS

PE3CA1046 is a TNC male to TNC female bulkhead cable using PE-141FLEX coax. This Pasternack TNC male to TNC female bulkhead cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm TNC for connector 2.

Our male TNC to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1046 TNC male to TNC female bulkhead cable assembly is constructed with PE-141FLEX coax and the maximum VSWR is 1.45:1.
