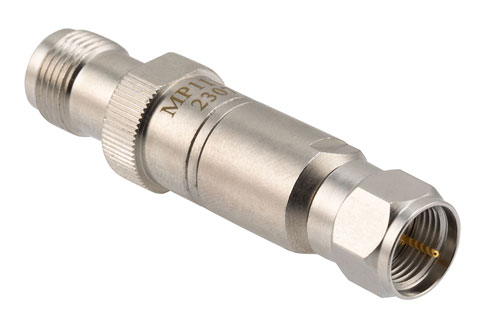

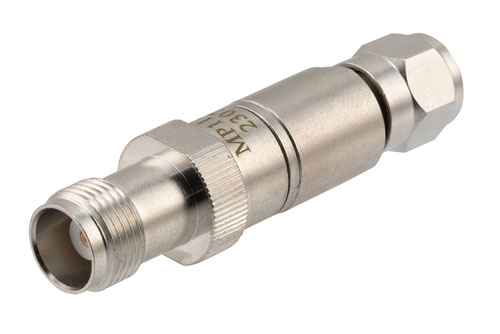

RF impedance matching pad (also referred to as coaxial matching pad) PE70MP1111 from Pasternack has TNC connector in and is 50 Ohm, type F connector out and is 75 Ohm. This coaxial TNC to F type impedance matching pad has a female TNC in and a male type F out. Our 50 Ohm TNC to 75 Ohm type F impedance matching pad is manufactured with a minimum frequency of DC and a maximum frequency of 3 GHz.
This radio frequency 50 Ohm TNC female to 75 Ohm type F male RF impedance matching pad design has a maximum attenuation of 7.5. Body material of the 50 Ohm TNC to 75 Ohm F type matching pad is brass.
50 Ohm TNC female to 75 Ohm type F male RF impedance pad PE70MP1111 from Pasternack is rated for a maximum VSWR of 1.25:1 and a maximum input power of 0.5 Watts. This matching pad is just part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This impedance matching pad with TNC to type F connectors is in-stock and Pasternack is where to buy your RF components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
