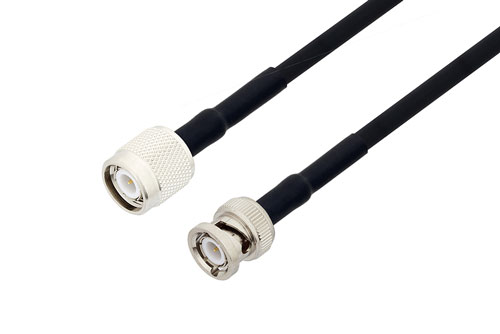

TNC Male to BNC Male Cable Using RG223 Coax with HeatShrink

Name: TNC Male to BNC Male Cable Using RG223 Coax with HeatShrink
Brand: Pasternack
SKU: PE3498/HS

製品ID: PE3498/HS

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG223/U
RF Cable Type	RG223
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4047	RG223/U	PE4044	KitBOM Datasheet

TNC Male to BNC Male Cable Using RG223 Coax with HeatShrink

PE3498/HS is a TNC male to BNC male cable using RG223 coax. This Pasternack TNC male to BNC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male TNC to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3498/HS TNC male to BNC male cable assembly is constructed with RG223 coax.
