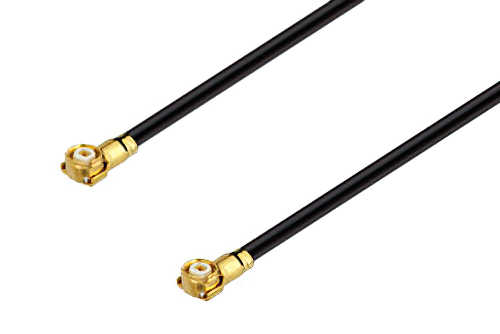

WMCX 1.6 プラグ〜 WMCX 1.6 プラグケーブル、0.81mm 同軸

製品ID: PE3CA1057

長さ

標準長

*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	WMCX 1.6
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	WMCX 1.6
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-81mm
RF Cable Type	0.81mm
RF Cable Impedance	50

Description

WMCX 1.6 Plug to WMCX 1.6 Plug Cable Using 0.81mm Coax, RoHS

PE3CA1057 is a WMCX 1.6 plug to WMCX 1.6 plug cable using 0.81mm coax. This Pasternack WMCX 1.6 plug to WMCX 1.6 plug cable assembly uses a 50 Ohm WMCX 1.6 for connector 1 and a 50 Ohm WMCX 1.6 for connector 2.

Our plug WMCX 1.6 to plug WMCX 1.6 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1057 WMCX 1.6 plug to WMCX 1.6 plug cable assembly is constructed with 0.81mm coax and the maximum VSWR is 1.55:1.

WMCX 1.6 プラグ 〜 WMCX 1.6 プラグ ケーブル、0.81mm 同軸

長さ

Key Specifications

Description

WMCX 1.6 Plug to WMCX 1.6 Plug Cable Using 0.81mm Coax, RoHS

WMCX 1.6 プラグ〜 WMCX 1.6 プラグケーブル、0.81mm 同軸
