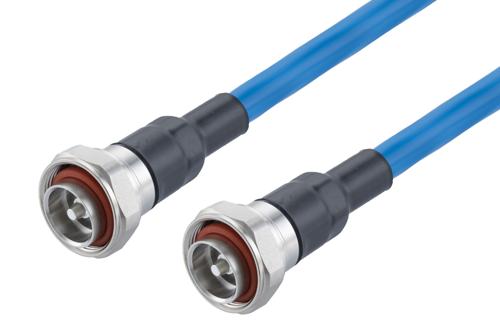

7/16 DIN オス～ 7/16 DIN オスケーブル, SPP-500-LLPL 同軸

製品ID: PE3W15978

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	7/16 DIN
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	7/16 DIN
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	SPP-500-LLPL
RF Cable Type	SPP-500-LLPL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44732	SPP-500-LLPL	PE44732	KitBOM Datasheet

7/16 DIN Male to 7/16 DIN Male Cable Using SPP-500-LLPL Coax

PE3W15978 is a 7/16 DIN male to 7/16 DIN male cable using SPP-500-LLPL coax. This Pasternack 7/16 DIN male to 7/16 DIN male cable assembly uses a 50 Ohm 7/16 DIN for connector 1 and a 50 Ohm 7/16 DIN for connector 2.

Our male 7/16 DIN to male 7/16 DIN cable assembly uses a corrugated cable type that is 50 Ohm. Pasternack PE3W15978 7/16 DIN male to 7/16 DIN male cable assembly is constructed with SPP-500-LLPL coax.
