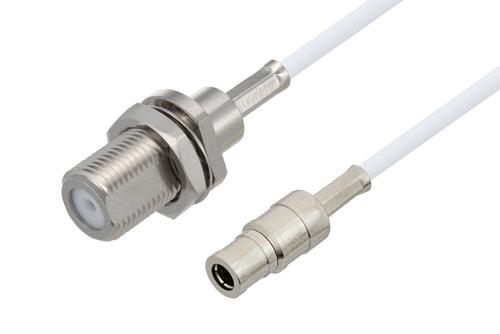

75 Ω Mini SMB プラグ～ 75 Ω F メスバルクヘッド, ケーブル 75 Ω RG187 同軸

製品ID: PE3W14721

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	Mini SMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	75 Ohm
Connector Series 2	F
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	75 Ohm
RF Cable Part Number	RG187A/U
RF Cable Type	RG187
RF Cable Impedance	75 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4993	RG187A/U	PE45504	KitBOM Datasheet

75 Ohm Mini SMB Plug to 75 Ohm F Female Bulkhead Cable Using 75 Ohm RG187 Coax

PE3W14721 is a Mini SMB plug to F female bulkhead cable using RG187 coax. This Pasternack Mini SMB plug to F female bulkhead cable assembly uses a 75 Ohm Mini SMB for connector 1 and a 75 Ohm F for connector 2.

Our plug Mini SMB to female F bulkhead cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3W14721 Mini SMB plug to F female bulkhead cable assembly is constructed with RG187 coax.
