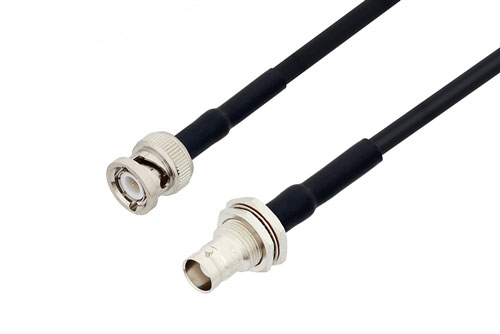

BNC オス〜 BNC メスバルクヘッドケーブル、RG223 同軸、熱収縮チューブ、鉛フリーはんだ

Name: BNC オス 〜 BNC メス バルクヘッドケーブル、RG223 同軸、熱収縮チューブ、鉛フリーはんだ
Brand: Pasternack
SKU: PE3557LF/HS

製品ID: PE3557LF/HS

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG223/U
RF Cable Type	RG223
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4044	RG223/U	PE4209	KitBOM Datasheet

BNC Male to BNC Female Bulkhead Cable Using RG223 Coax with HeatShrink, LF Solder, RoHS

PE3557LF/HS is a BNC male to BNC female bulkhead cable using RG223 coax. This Pasternack BNC male to BNC female bulkhead cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to female BNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3557LF/HS BNC male to BNC female bulkhead cable assembly is constructed with RG223 coax.
