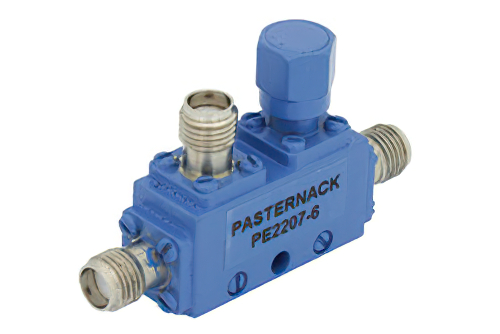

方向性 6 dB SMA 結合器、最大 18 GHz、最大定格 4 W

製品ID: PE2207-6

数量別価格

数量単価
1-9¥174,827
10-24¥166,086
25-49¥157,344
50+Call

消費税込単価
数量:
在庫数:3
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
DirectionalityDirectional
Connector SeriesSMA
Connector GenderFemale
DesignCoupler
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz
Maximum Input Power50 Watt
Coupling Value6 dB

Description

Directional 6 dB SMA Coupler From 12.4 GHz to 18 GHz Rated To 50 Watts

RF coupler part number PE2207-6 from Pasternack is one of over 40,000 RF components available for same day shipping worldwide. This RF coupler is directional and is manufactured with SMA ports. Our directional coupler design uses SMA ports that are female gender and 50 Ohm impedance.

The Pasternack directional coupler design is rated for a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz. Directional coupler part # PE2207-6 is constructed with a coupling value of 6 dB and a coupler directivity of 15 dB. This female SMA directional coupler is built with a maximum insertion loss of 2.2 dB and a maximum input power of 50 watts.

Our directional coupler design with SMA connector is rated for a maximum insertion loss of 2.2 dB and a maximum VSWR of 1.3. Additional female SMA coupler specs for this RF component can be found on its radio frequency directional coupler PDF specifications datasheet above. PE2207-6 directional 6 dB SMA coupler is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack and it can be bought and then shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
