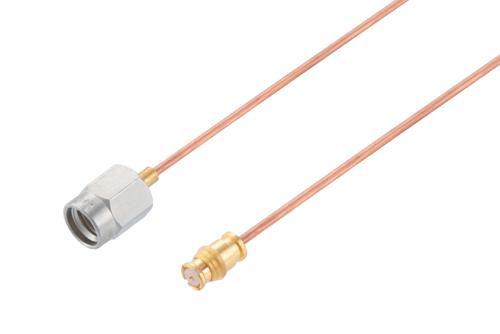

SSMA オス〜 SMP メスケーブル、PE-047SR 同軸

製品ID: PE3W07992

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SSMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMP
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-047SR
RF Cable Type	PE-047SR
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44441	PE-047SR	PE45277	KitBOM Datasheet

SSMA Male to SMP Female Cable Using PE-047SR Coax

PE3W07992 is a SSMA male to SMP female cable using PE-047SR coax. This Pasternack SSMA male to SMP female cable assembly uses a 50 Ohm SSMA for connector 1 and a 50 Ohm SMP for connector 2.

Our male SSMA to female SMP cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3W07992 SSMA male to SMP female cable assembly is constructed with PE-047SR coax.
