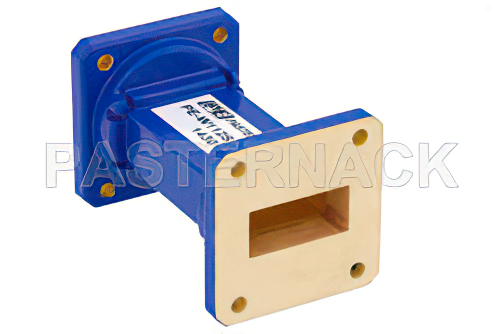

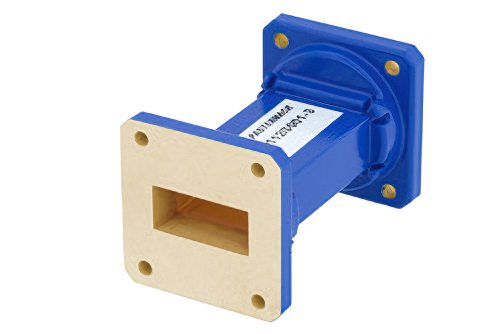

WR-112 商用グレード 直管導波管セクション 3 インチ長、UG-51/U フランジ、動作範囲 7.05 GHz 〜 10 GHz

製品ID: PE-W112S001-3

数量別価格

数量単価
1-9¥93,094
10-24¥88,439
25-49¥83,785
50+Call

消費税込単価
数量:
お問い合わせください
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide Size 1WR-112
Flange Size 1UG-51/U
Waveguide Size 2WR-112
Flange Size 2UG-51/U
Length3 inches
Frequency, Min7.05 GHz
Frequency, Max10 GHz

Description

WR-112 Commercial Grade Straight Waveguide Section 3 Inch Length with UG-51/U Flange Operating from 7.05 GHz to 10 GHz

PE-W112S001-3 WR-112 waveguide section is straight and is 3 inches long. This 3 inch WR-112 straight waveguide section from Pasternack is commercial grade and has a UG-51/U flange. Our straight WR-112 waveguide section with UG-51/U flange has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz.

WR-112 waveguide section PE-W112S001-3 is part of over 40,000 RF, microwave and millimeter wave components. Our commercial grade WR-112 straight waveguide section will ship same the day as it is purchased worldwide as with our other RF parts.
