Microstrip Calculator

Pasternack's Microstrip Calculator computes a microstrip's height/width ratio, impedance and relative dielectric constant for a microstrip transmission line.

Bookmark or "Favorite" this page by pressing CTRL + D.

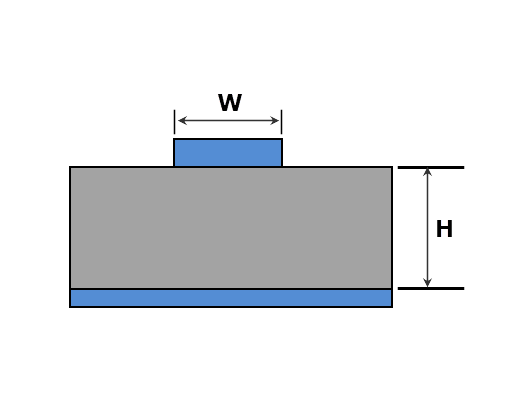

Note: Units for width and height must be consistent

Width:
Height:

Result:
Width/Height:
Effective Dielectric Constant:
Impedance:

A Microstrip is a type of electrical transmission line used to transmit RF signals and are commonly fabricated using printed circuit board (PCB) technology. Compared to waveguides, microstrip is generally has a lower power handling capacity, and higher losses due to the fact that it is not enclosed.

**Note: All of our calculators allow SI prefix input. For example, if you wish to input "25000000", just type "25M" instead. See the quick-reference table below for all compatible SI prefixes.
Prefix Symbol Value
Tera 'T' 1012
Giga 'G' 109
Mega 'M' 106
kilo 'k' 103
Prefix Symbol Value
pico 'p' 10-12
nano 'n' 10-9
micro 'u' 10-6
milli 'm' 10-3
