Stripline Impedance Calculator

Pasternack's Stripline Impedance Calculator uses the dimensions of the stripline, as well as the dielectric constant, to compute the characteristic impedance.

Bookmark or "Favorite" this page by pressing CTRL + D.

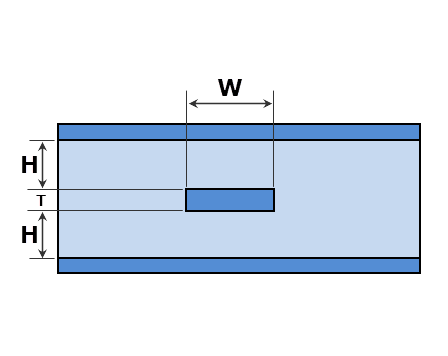

A stripline consists of a central conductor surrounded by dielectric material between two groundplanes. Striplines, in many cases, can be used where microstrips would be, so long as size is not a constraint. In fact, striplines often make components such as band-pass filter's more accurately, with more symmetric roll-off and no lower cutoff frequency.
